Manual Sliding Door
We provide manual sliding doors of heavy-duty operation, down to −30° temperature and comply with the European commission (EC) safety standard.
- Durable Pulley bracket that carry load up to 350kg without fracture
- Light sliding effort needed to operate the sliding door
- Unique External and internal door leveller handle
- Simple yet elegant design
- Door panel with heater for the freezer
- Adjustable vertically and horizontally
- Door panel with heater for the freezer
Accessories

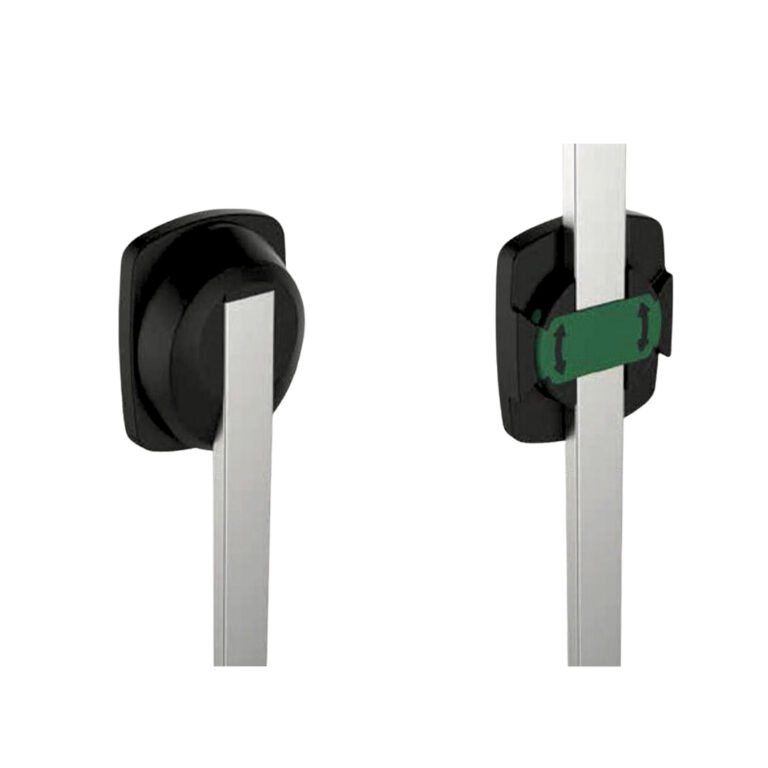

Sliding Door Handles Leveler
Model : IK8100
• Pass-through lever handle suitable for door
thickness from 50 to 100 mm
• The main body is in reinforced composite material
with stainless steel lever (rectangular section pipe)
IK8100 Technical Data
• Assembly only 5-pass-through holes
• Reduced dimension: inside handle thickness only 29 mm
• Possibility to install only the lever handle
• External handle lever length: 610mm

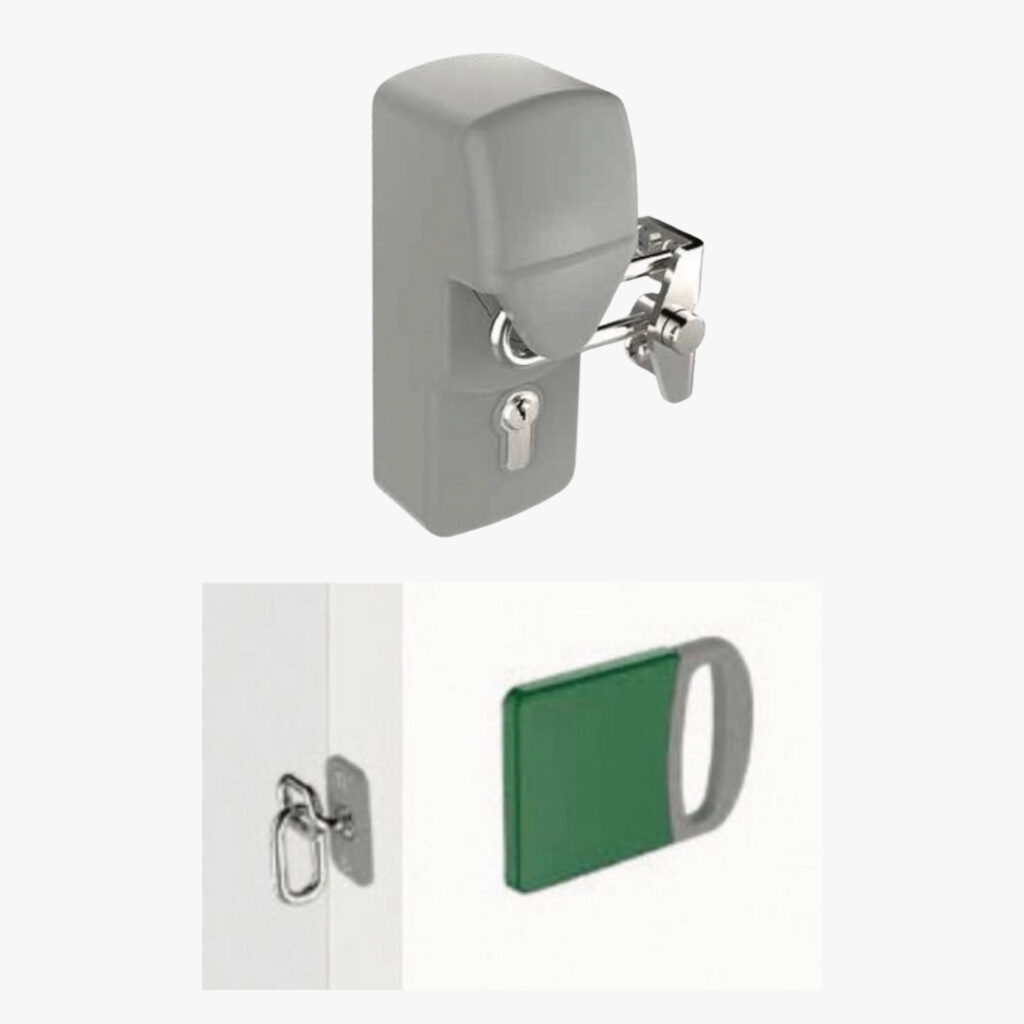

Locks For Sliding Door
• Locks in composite material, low temperature and corrosion-resistant
(patented)
• Suitable for manual sliding doors
• Applicable for automatic doors with additional limit switch.
• European standard compliant cylinder
• Inside opening device with release placed on the door leaf
Lock Series 9700 HP Technical Data
• Door thickness from 50 to 100 mm
• Body standard colours: blue RAL
5015 or grey RAL 7004
• Strikes: stainless-steel
Sliding Door Close Up View

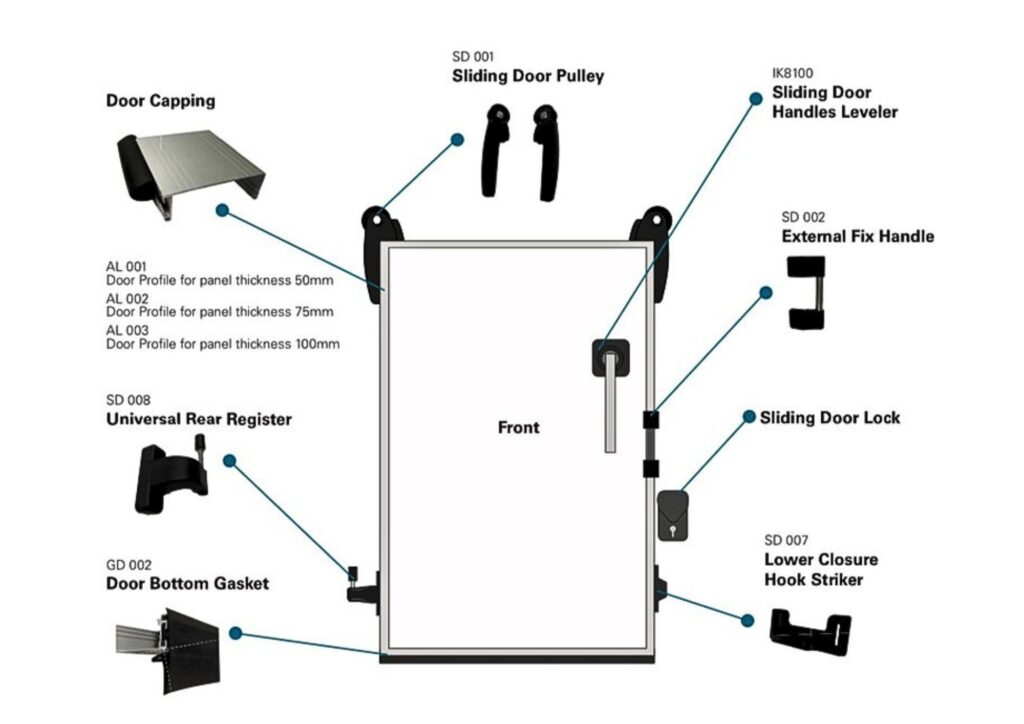

Front View

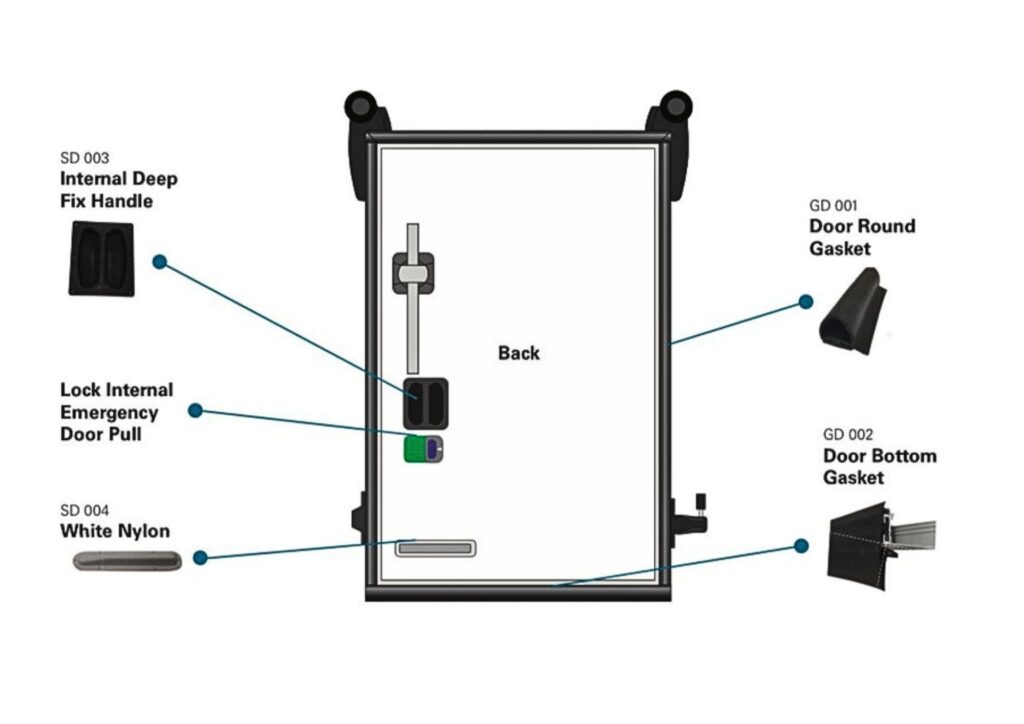

Back View

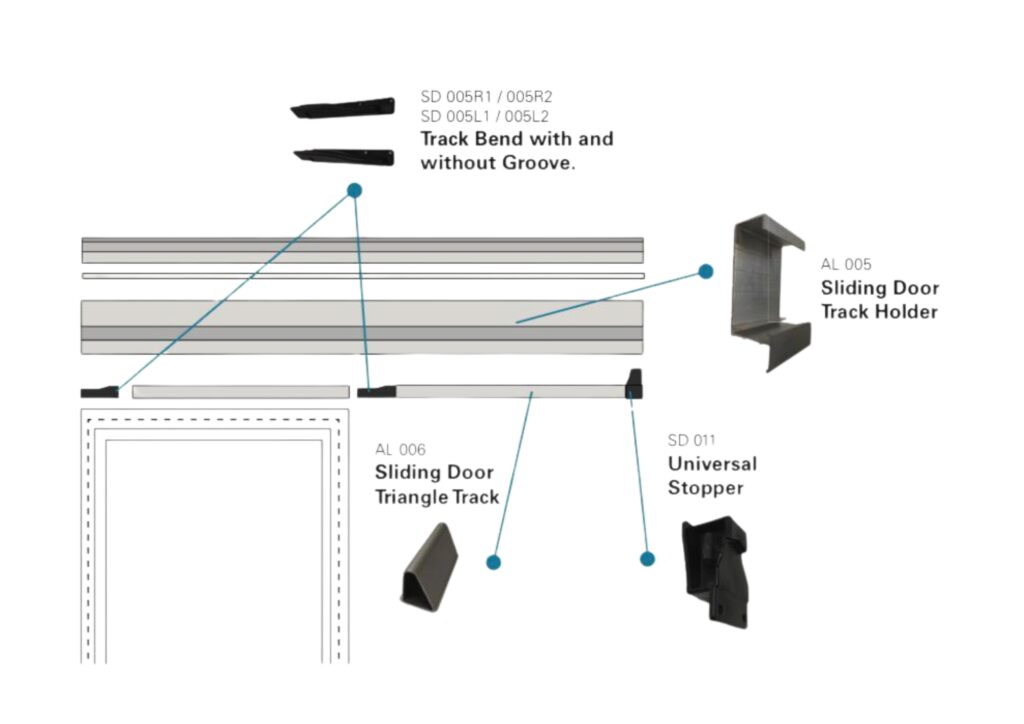

Door Frame

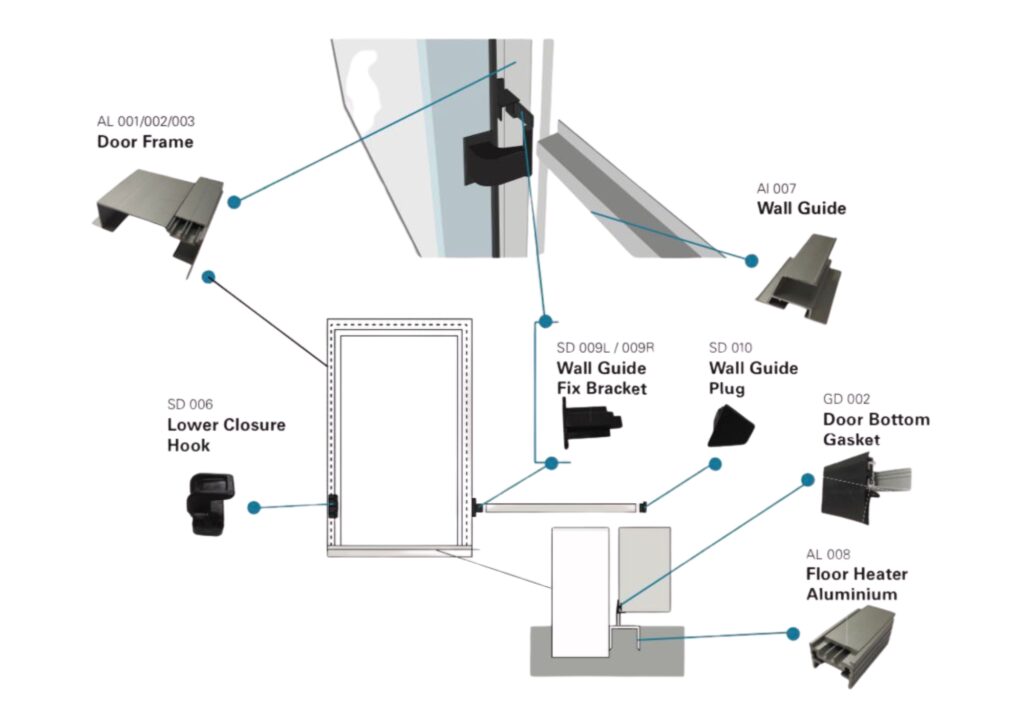

Outer Door Frame
